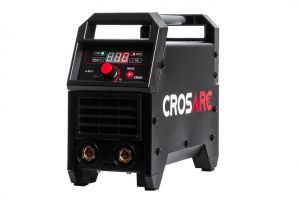

CROSARC Plasma 61 NHF
£952.00 Ex. VAT

The CROSARC PLASMA 61 NHF is a latest technology IGBT inverter based plasma cutting power source, operating from a 230v mains supply. This highly portable machine utilises the latest evolution in plasma cutting technology, the CROSARC PLASMA 61 NHF incorporates the latest design in non-HF hand torches and offers smooth and flexible operation for a wide range of applications where a heavy duty 230v supply is needed.

  • Plasma Cutting

  • 2T/4T

  • 20mm Clean Cut

  • Air Pressure Adjustment

  • Latest IGBT Inverter Power Source

  • Digital Amp Display

  • Portable

  • Generator Friendly

  • Easy Set Up & Operation

  • Owner’s Manual

  • 61 NHF Inverter Power Source

  • 6 Mtr PT60 Plasma Cutting Torch

  • Earth Return Lead & Clamp

Input Current

32 Amps

Air Pressure

5.5 Bar

Current Range

15-60 Amps

Duty Cycle

@ 40°C: 60 Amps @ 40%

Efficiency

80%

Power Factor at 100%

0.73

Protection/Insulation Class

IP21/F

Cutting Capacity Clean Cut

20mm

Cutting Capacity Severance

25mm

Generator Compatible

Yes

Conforms to

EN IEC 60974-10:2021
EN IEC 60974-1:2022
Voltage
240VOLT
Welding Range (amps)
Voltage Steps
Duty Cycle
60amp @ 40%
Wire Range
Fuse Rating
32AMP
Weight Approx. Kg
20KG
£952.00
Voltage
240VOLT
Welding Range (amps)
Voltage Steps
Duty Cycle
60amp @ 40%
Wire Range
Fuse Rating
32AMP
Weight Approx. Kg
20KG
